AUDISON
The two-way APBMW K4E kit creates a three-dimensional sound stage and give the musical message the essential timbre accuracy.
The 100 mm (4″) midrange is provided with a water-repellent pressed-paper cone, a material providing natural sound. It features a low resonance frequency that allows hi-pass cut-off in the 150-200 Hz rangefor an excellent mid-low reproduction.
The 25 mm coil and Tetolon dome tweeter features a great extension on both medium and high frequencies and is optimized for off-axis output, for an extended sound stage in the three dimensions, that amplifies the perception of reality in the car cabin.

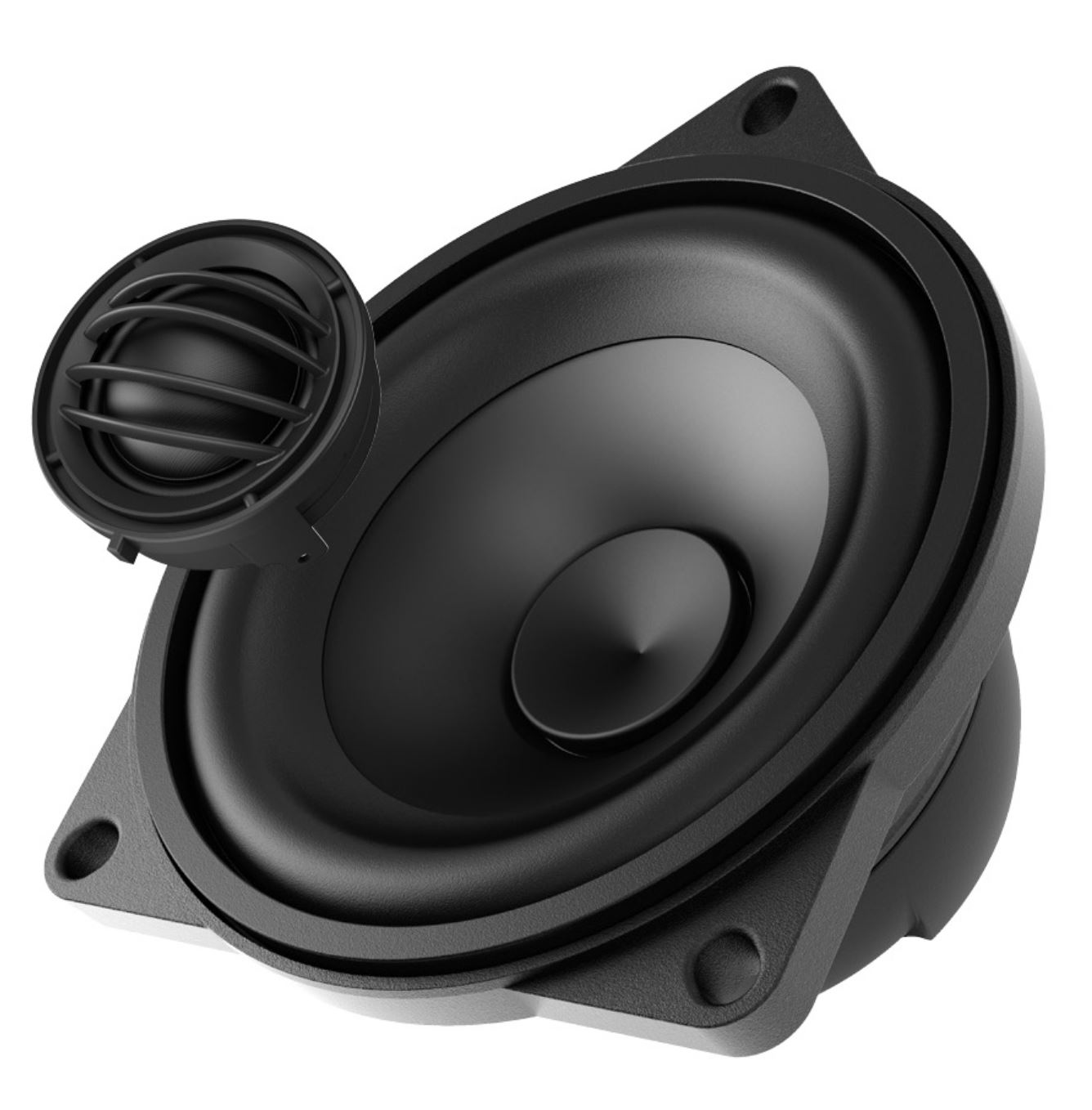

The two-way APBMW K4M kit creates a three-dimensional sound stage and give the musical message the essential timbre accuracy.
The 100 mm (4″) midrange is provided with a water-repellent pressed-paper cone, a material providing natural sound. It features a low resonance frequency that allows hi-pass cut-off in the 150-200 Hz rangefor an excellent mid-low reproduction.
The 25 mm coil and Tetolon dome tweeter features a great extension on both medium and high frequencies and is optimized for off-axis output, for an extended sound stage in the three dimensions, that amplifies the perception of reality in the car cabin.
Subwoofers have been designed with electro-acoustic parameters that maximize performance for the factory box available below the seats. The ABS plastic basket, reinforced with fiberglass, and the acoustic structure featuring a front magnet, provide for a minimal installation depth for a perfect compatibility with the whole range. Two 5 mm polyurethane gaskets, supplied, allow the subwoofer to fit perfectly to the box, decoupling it from vibration.

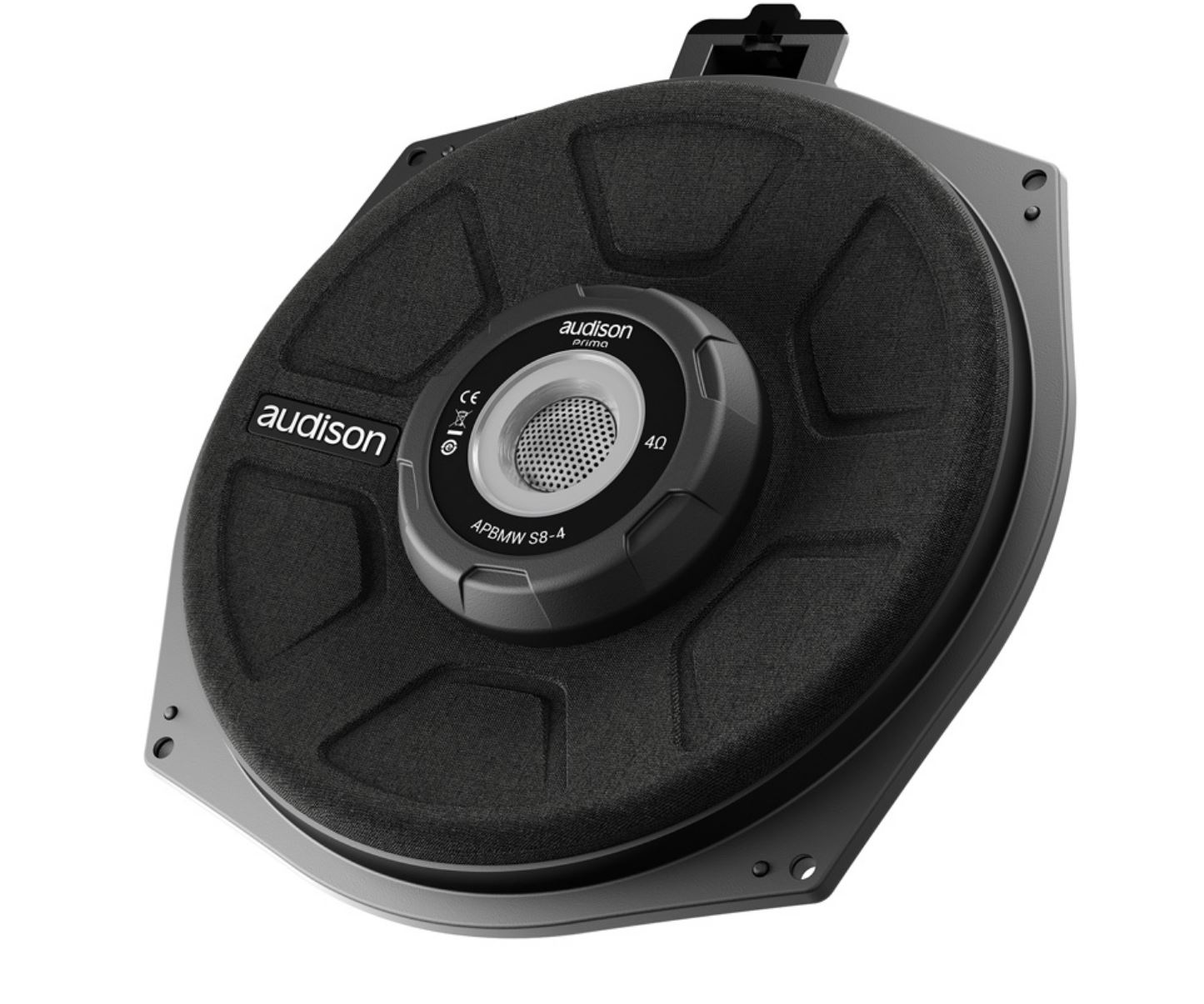

The 200 mm (8″) APBMW S subwoofers allow a “direct replacement” of the OEM speakers underneath the front seats, making the most of the factory acoustic load and generating deep and crisp low frequencies. You can choose between S8-2 with 2 ohm impedance and S8-4 with 4 ohm impedance for improved system composition versatility. In fact, in the mid-high passive filtered system configuration, with the crossover provided, 4 of the 8-channels of the AP 8.9 bit can be configured in bridge mode delivering 130W rms to each S8-4 installed under the seat. The S8-2 can be used in a fully active, multi-amplified front system, maximizing the power of the AP 8.9 bit at 2 ohms, and employing additional 2 channels for the rear system. The Neodymium magnet used on S8-4 and S8-2 allows for greater power and control than ferrite, while maintaining the depth of installation unaltered.
Subwoofers have been designed with electro-acoustic parameters that maximize performance for the factory box available below the seats. The ABS plastic basket, reinforced with fiberglass, and the acoustic structure featuring a front magnet, provide for a minimal installation depth for a perfect compatibility with the whole range. Two 5 mm polyurethane gaskets, supplied, allow the subwoofer to fit perfectly to the box, decoupling it from vibration.
The 200 mm (8″) APBMW S subwoofers allow a “direct replacement” of the OEM speakers underneath the front seats, making the most of the factory acoustic load and generating deep and crisp low frequencies. You can choose between S8-2 with 2 ohm impedance and S8-4 with 4 ohm impedance for improved system composition versatility. In fact, in the mid-high passive filtered system configuration, with the crossover provided, 4 of the 8-channels of the AP 8.9 bit can be configured in bridge mode delivering 130W rms to each S8-4 installed under the seat. The S8-2 can be used in a fully active, multi-amplified front system, maximizing the power of the AP 8.9 bit at 2 ohms, and employing additional 2 channels for the rear system. The Neodymium magnet used on S8-4 and S8-2 allows for greater power and control than ferrite, while maintaining the depth of installation unaltered.

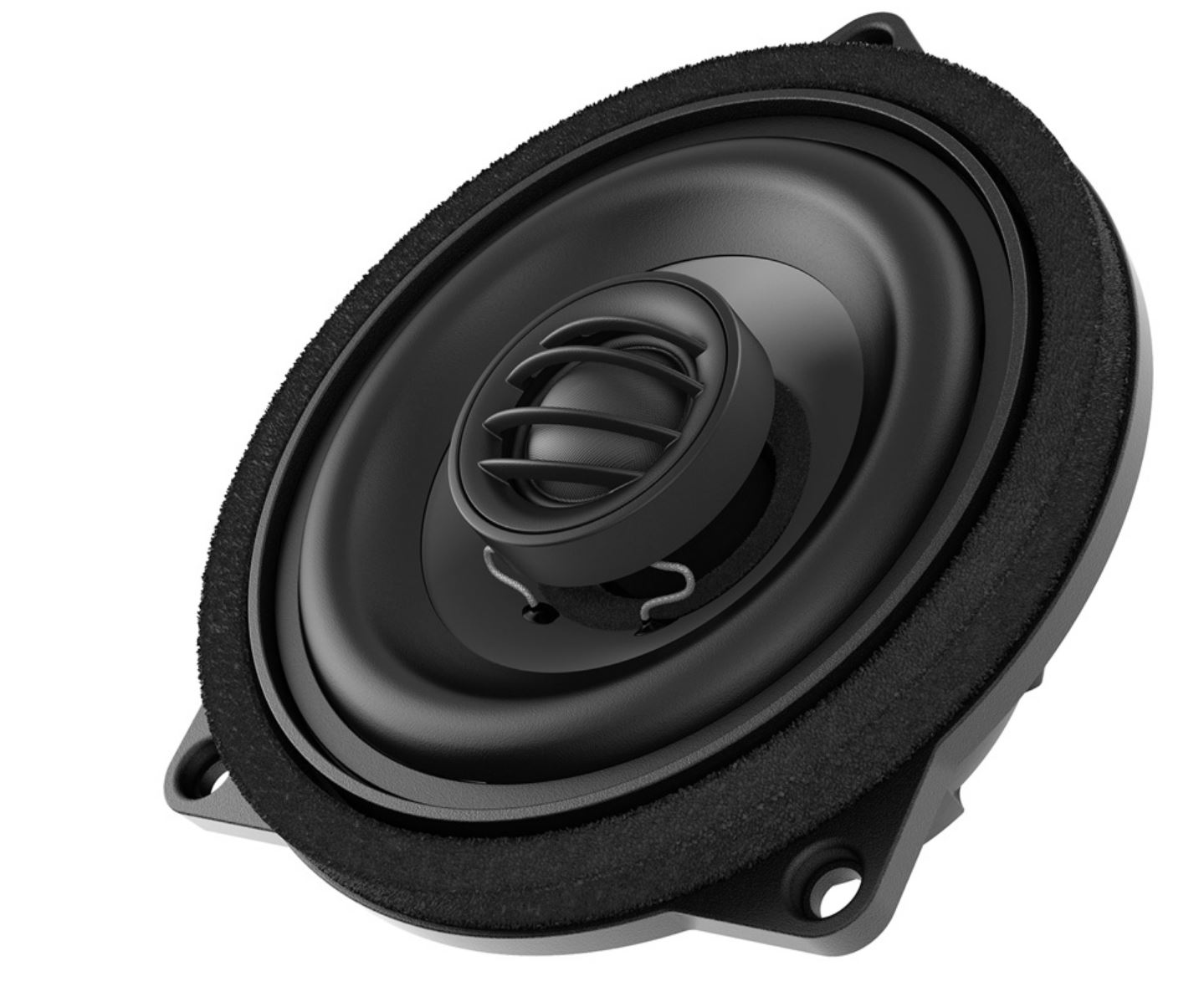

The APBMW X coaxials have been designed for BMW-MINI models that do not allow the installation of a two-way system on the front or the upgrade of the rear system.
The 100 mm (4″) APBMW X4E, with basket and fixing screws dedicated to the specific car model, feature a water-repellent pressed-paper cone for natural and color-free mid-range frequencies.
The 20 mm coil and Tetolon dome tweeter, a material boasting lightness and damping properties, offersoptimized dispersion features for OEM placement, elevating the sound stage to a realistic level.

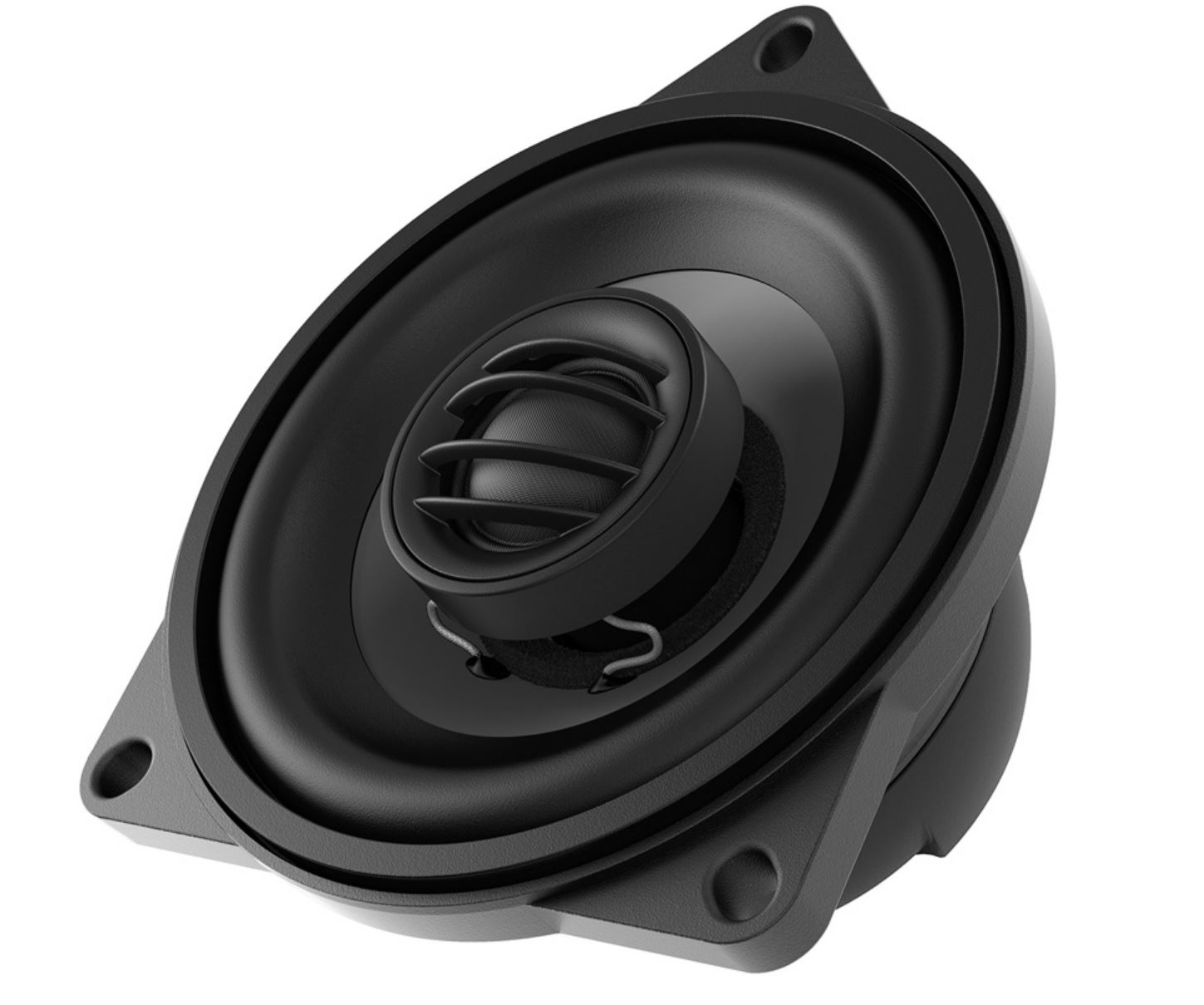

The APBMW X coaxials have been designed for BMW-MINI models that do not allow the installation of a two-way system on the front or the upgrade of the rear system.
The 100 mm (4″) APBMW X4M, with basket and fixing screws dedicated to the specific car model, feature a water-repellent pressed-paper cone for natural and color-free mid-range frequencies.
The 20 mm coil and Tetolon dome tweeter, a material boasting lightness and damping properties, offersoptimized dispersion features for OEM placement, elevating the sound stage to a realistic level.
